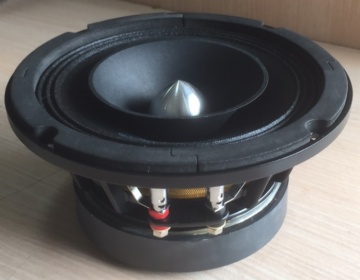

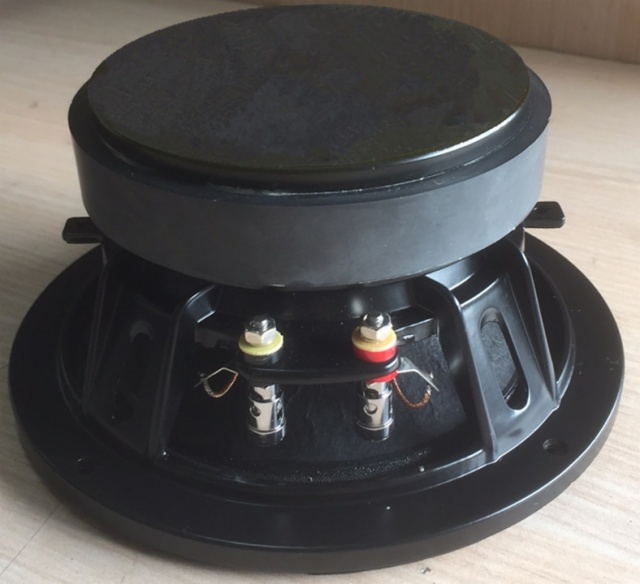

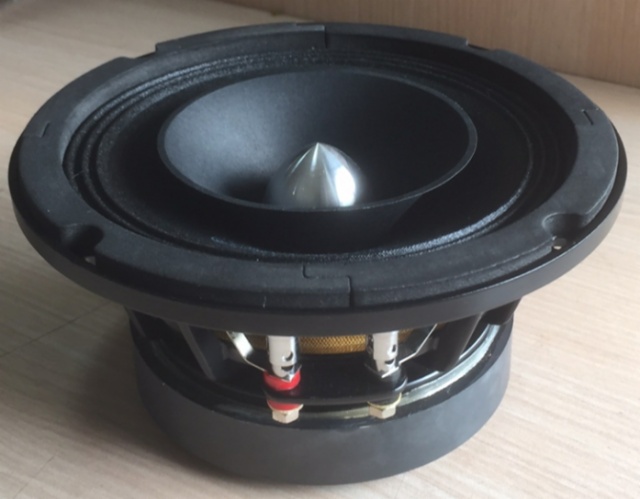

Mid Range Speaker MD.260BC.200.02

Item Code:MD.260BC.200.02 Features:
  • Description



Nominal Diameter 10''/254mm
Voice Diameter 2''/50.8 mm
Available Impedance 4 ohms
Power Rating 200 W(RMS)
Sensitivity (1M-1W) 96.9 d B
Frequency Range 70-6.5K Hz
Resonance (F0) 70 Hz
Voice Coil Material Cooper
Former Material KSV
Magnet Material Y30 Ferrite
Dust Dome Material AL-Bullet
Suspension Material Paper
Cone/ Surround Material Cloth

Dimension
Overall Diameter  260 mm
Flange Height 10MM
Depth ( Excl Flange) 105MM
Magnet Diameter 156 mm / 50 Oz

Mounting Infromation
Chassis Shoulder Diameter φ232MM
Outer Bolt Circle φ247*8-φ5.5

Weight
Net Weight 4.5 kg
Shipping Weight 4.75 kg
