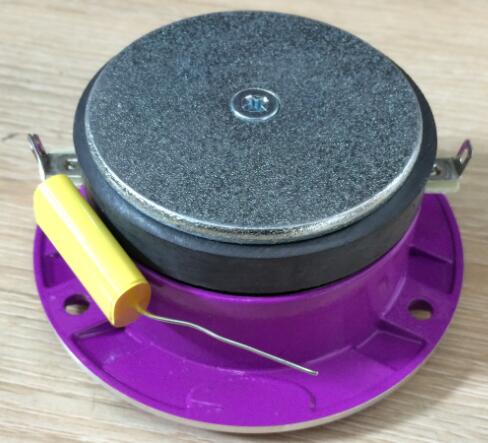

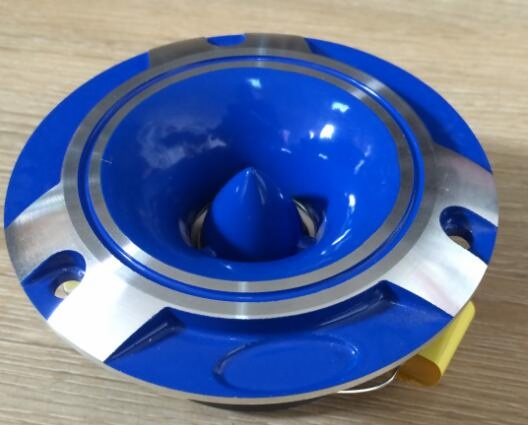

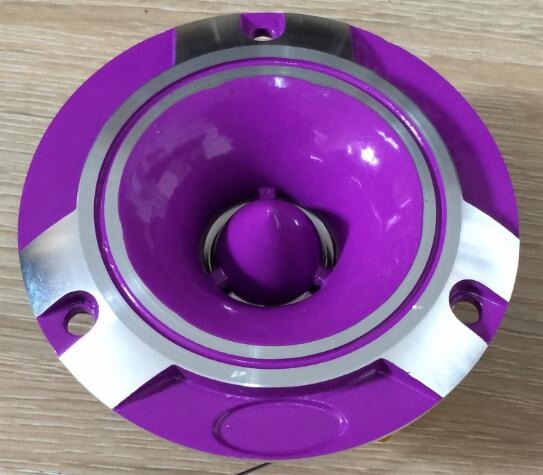

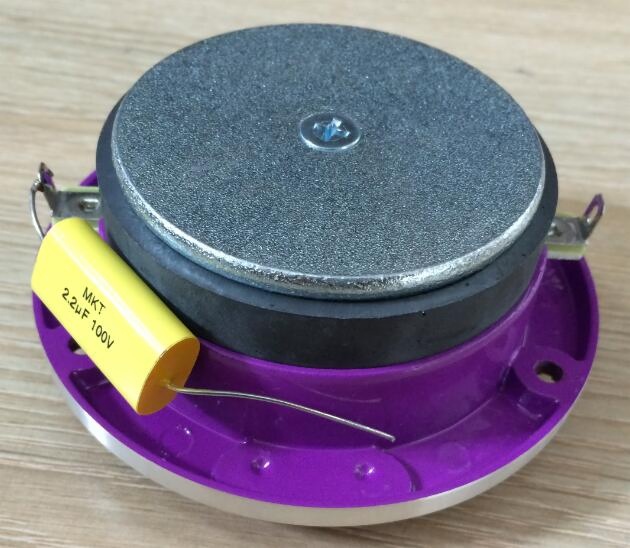

car tweeter TDR101

Item Code:TDR101 Features:*KSV 1'' ,25.4mm CCAW Field Replaceable Voice Coil * Die Cast Aluminum Frames * High Density 5.5oz Ferrite Magnets * 50 Watts Peak Power * Aluminum Phase Plug To Reduce Heat * 2.2 Uf /100V Cap Filter
  • Description



Nominal Impedance :  4 Ohm
Power Rating RMS:  20 watts
Usable Frequency Range :1.5k-20kHz
Sensitivity:  99 dB/w/m
Magnet  Weight:  5.5 Oz
Voice Coil Diameter:  25.4 mm
DC Resistance (Re): 3.4 Ohm
Overall Diameter: Φ98*45 mm
Mounting Size: Φ5.5*3-Φ84mm
