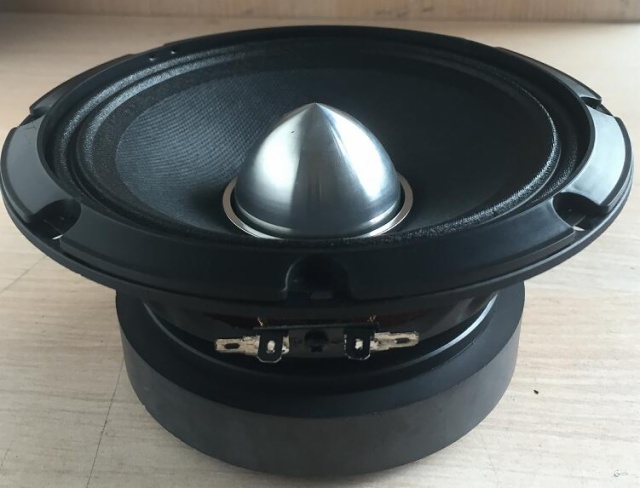

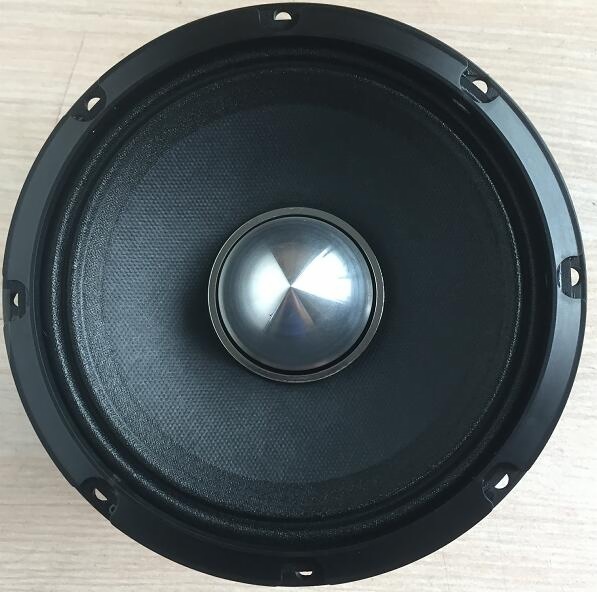

Mid Range Speaker MD167B.100N

Item Code:MD167B.100N Features:
  • Description



Specfication

Nominal Diameter 6.5''/166mm
Voice Diameter 2''/50.8 mm
Available Impedance 4 ohms
Power Rating 100 W(RMS)
Sensitivity (1M-1W) 95.3 d B
Frequency Range 120-10K Hz
Resonance (F0) 120 Hz
Voice Coil Material Cooper
Former Material KSV
Magnet Material Y30 Ferrite
Dust Dome Material AL-Bullet
Suspension Material Paper
Cone/ Surround Material Cloth

Dimension
Overall Diameter  167 mm
Flange Height 5MM
Depth ( Excl Flange) 70MM
Magnet Diameter 120 mm / 30 Oz

Mounting Infromation
Chassis Shoulder Diameter φ142MM
Outer Bolt Circle φ157*8-φ5.5

Weight
Net Weight 2.3 kg
Shipping Weight 2.5 kg

Other Products

Product Name:
Car tweeter
Model:
TDR102-2QS
Description:
* 1'' Throat Size * KSV1'' ,25.4mm CCAW Field Replaceable Voice Coil * Die Cast Aluminum Frames * High Density 5.5oz Ferrite Magnets * 50 Watts Peak Power * Aluminum Phase Plug To Reduce Heat * 2.2 Uf /100V Cap Filter
Product Name:
CAR SUBWOOFER
Model:
WF-300
Description:
12 INCH SUBWOOFER SPEAKER
Product Name:
PRO MIDRANGE SPEAKER
Model:
SP-166-01
Description:
Product Name:
car tweeter
Model:
TDS107-5S
Description:
* 1'' Throat Size * KSV1'' ,37.4mm CCAW Field Replaceable Voice Coil * Die Cast Aluminum Frames * High Density 13.4oz Ferrite Magnets * 150 Watts Peak Power * Aluminum Phase Plug To Reduce Heat * 3.3 Uf /100V Cap Filter
Product Name:
car tweeter
Model:
TDC504S
Description:
* 1'' Throat Size * KSV1.5'' ,37.4mm CCAW Field Replaceable Voice Coil * Die Cast Aluminum Frames * High Density 13.4oz Ferrite Magnets * 150 Watts Peak Power * Aluminum Phase Plug To Reduce Heat * 3.3 Uf /100V Cap Filter
Product Name:
car tweeter (aluminum)
Model:

Description:
Product Name:
Midrange bullet Speaker-3
Model:
MZW-200-02
Description:
Product Name:
Mid Range Speaker
Model:
MD.260BC.200.02
Description:
more
