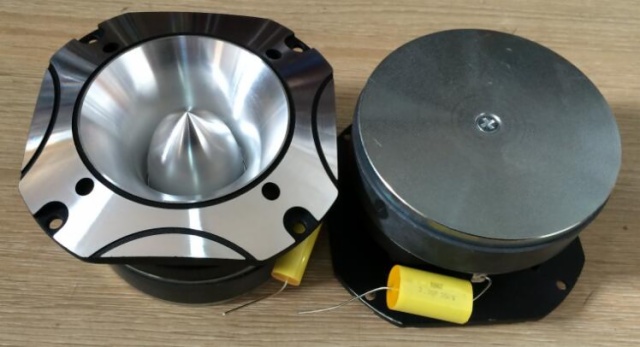

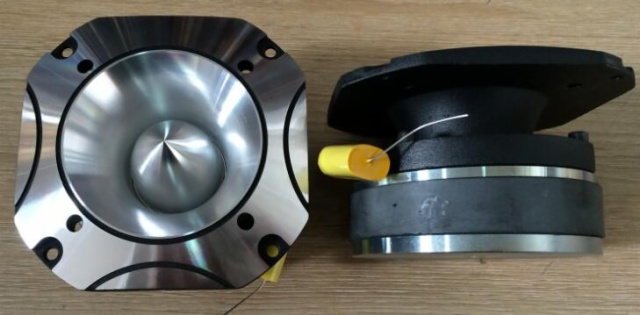

car tweeter TDS107-5S

Item Code:TDS107-5S Features:* 1'' Throat Size * KSV1'' ,37.4mm CCAW Field Replaceable Voice Coil * Die Cast Aluminum Frames * High Density 13.4oz Ferrite Magnets * 150 Watts Peak Power * Aluminum Phase Plug To Reduce Heat * 3.3 Uf /100V Cap Filter
  • Description



Nominal Impedance : 8 Ohm
Power Rating RMS:  80 watts
Usable Frequency Range :1k-20kHz
Sensitivity:  97 dB/w/m
Magnet  Weight:  13.4Oz
Voice Coil Diameter:  37.4 mm
DC Resistance (Re): 6.3 Ohm
Overall Diameter: 102*102*67mm
Mounting Size: Φ4.5*4-Φ107.5mm

Other Products

Product Name:
Car tweeter
Model:
TDR102-2QS
Description:
* 1'' Throat Size * KSV1'' ,25.4mm CCAW Field Replaceable Voice Coil * Die Cast Aluminum Frames * High Density 5.5oz Ferrite Magnets * 50 Watts Peak Power * Aluminum Phase Plug To Reduce Heat * 2.2 Uf /100V Cap Filter
Product Name:
Aluminum car tweeter
Model:
TDS-107
Description:
* 1'' Throat Size * KSV1.5'' ,37.4mm CCAW Field Replaceable Voice Coil * Die Cast Aluminum Frames * High Density 13.4oz Ferrite Magnets * 150 Watts Peak Power *Aluminum Phase Plug To Reduce Heat * 3.3 Uf /100V Cap Filter
Product Name:
car tweeter
Model:
TDR101
Description:
*KSV 1'' ,25.4mm CCAW Field Replaceable Voice Coil * Die Cast Aluminum Frames * High Density 5.5oz Ferrite Magnets * 50 Watts Peak Power * Aluminum Phase Plug To Reduce Heat * 2.2 Uf /100V Cap Filter
Product Name:
Mid range speaker
Model:
MD264B.200N
Description:
Product Name:
CAR SUBWOOFER
Model:
WF-300
Description:
12 INCH SUBWOOFER SPEAKER
Product Name:
Midrange bullet Speaker-3
Model:
MZW-200-02
Description:
Product Name:
car tweeter
Model:
TDC504S
Description:
* 1'' Throat Size * KSV1.5'' ,37.4mm CCAW Field Replaceable Voice Coil * Die Cast Aluminum Frames * High Density 13.4oz Ferrite Magnets * 150 Watts Peak Power * Aluminum Phase Plug To Reduce Heat * 3.3 Uf /100V Cap Filter
Product Name:
PRO MIDRANGE SPEAKER
Model:
SP-166-01
Description:
