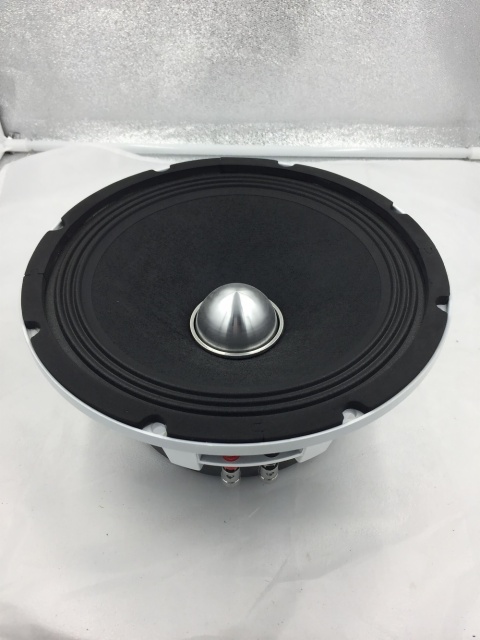

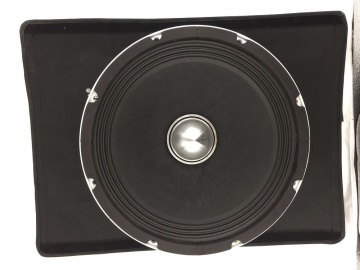

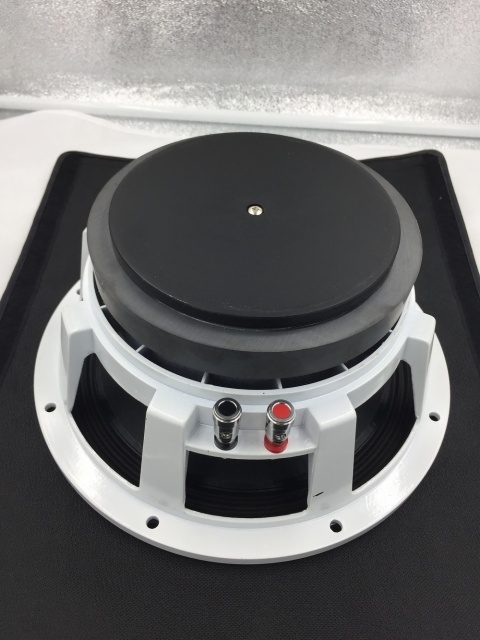

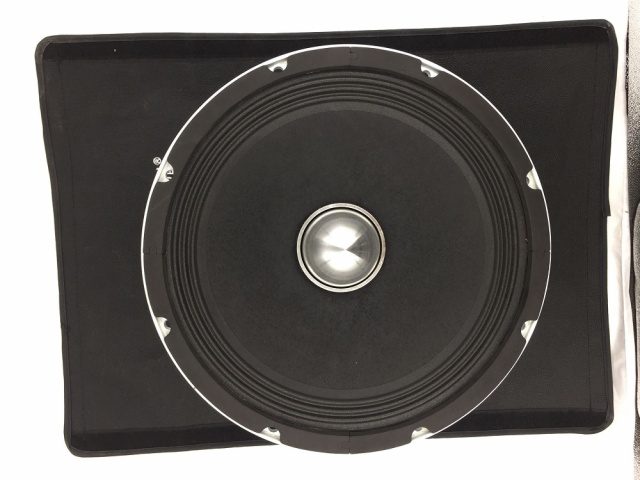

Mid range speaker MD264B.200N

Item Code:MD264B.200N Features:
  • Description



Specfication

Nominal Diameter 10''/265mm
Voice Diameter 2.5''/60.8 mm
Available Impedance 4 ohms
Power Rating 200 W(RMS)
Sensitivity (1M-1W) 96 d B
Frequency Range 70-7.5K Hz
Resonance (F0) 70 Hz
Voice Coil Material Cooper
Former Material KSV
Magnet Material Y30 Ferrite
Dust Dome Material AL-Bullet
Suspension Material Paper
Cone/ Surround Material Cloth

Dimension
Overall Diameter φ265 mm
Flange Height      9MM
Depth ( Excl Flange)  115MM
Magnet Diameter φ170 *20mm / 70 Oz

Mounting Infromation
Chassis Shoulder Diameter  φ232MM
Outer Bolt Circle   φ249*8-φ6.5

Weight
Net Weight 5 kg
Shipping Weight 5.5 kg
