HIGH HOPE ELECTRONIC & SCIENTIFIC CO.,LTD.

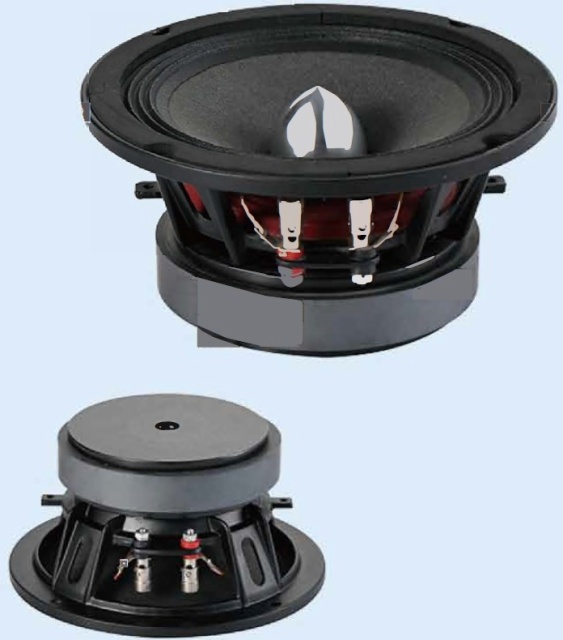

6.5 INCH MIDRANGE SPEAKER   MODEL: (LZ-601B)

SIZE：6.5” INCH MIDRANGE SPEAKER

POWER：RMS 100W /200W WATTS MAX

ALUMINUM BASKET
VOICE COIL：38.6 MM1.5” KSV CCAW
MAGNET：110*60*20  Y30
WIDTH OF COPPERWIRE ：6mm

IMPEDANCE：4 OHMS

FREQ.RESP.：100 HZ-10KHZ
SENSITIVITY：93 dB/W/M

Dimension :  φ174*85mm

8 INCH MIDRANGE SPEAKER   MODEL: (LZ-801B)

SIZE：8” INCH MIDRANGE SPEAKER

POWER：RMS 200W /400W WATTS MAX

ALUMINUM BASKET
VOICE COIL：50.5 MM 2” KSV CCAW
MAGNET：134*60*20  Y30
WIDTH OF COPPERWIRE ：8mm

IMPEDANCE：4 OHMS

FREQ.RESP.：100 HZ-9KHZ
SENSITIVITY：93 dB/W/M

Dimension :  φ212*102mm

10 INCH MIDRANGE SPEAKER   MODEL: (LZ-1001B)

SIZE：10” INCH MIDRANGE SPEAKER

POWER：RMS 400W /800W WATTS MAX

ALUMINUM BASKET
VOICE COIL： 2.5” KSV CCAW
MAGNET：134*60*20  Y30
WIDTH OF COPPERWIRE ：8mm

IMPEDANCE：4 OHMS

FREQ.RESP.：90 HZ-9KHZ
SENSITIVITY：95 dB/W/M

Dimension :  φ312*125mm
