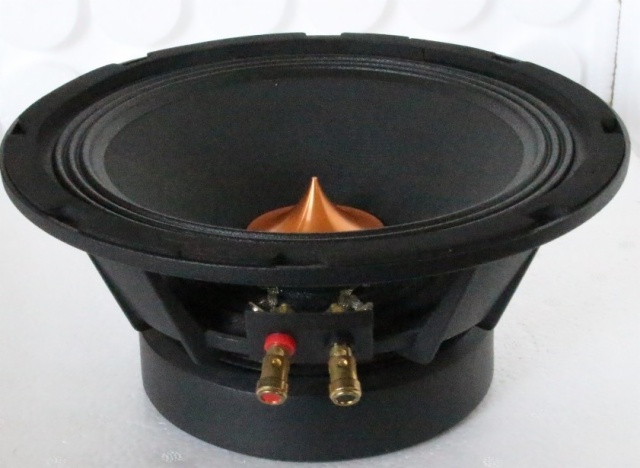

WZ-814 MIDRANGE SPEAKER WZ-814

Item Code:WZ-814 Features:Model:WZ-814 MIDRANGE SPEAKER RMS：100W T-YOKE ：6 mm PLATE：6mm MAGNET: Φ120XΦ60X20 Y30 Freq. Resp. ：90 HZ---16 KHZ SPL：93 DB MATERIAL：ALUMINUM FRAME VOICE COIL: KSV 2'' 4 OHM DIMENSION: 8 INCH
  • Description

Model:WZ-814

MIDRANGE  SPEAKER

RMS：100W

T-YOKE  ：6 mm

PLATE：6mm

MAGNET: Φ120XΦ60X20 Y30

Freq. Resp. ：90 HZ---16 KHZ

SPL：93 DB

MATERIAL：ALUMINUM FRAME

VOICE COIL: KSV 2''   4 OHM

DIMENSION: 8 INCH



Other Products

Product Name:
Midrange Speaker-32
Model:
ZWN39-6.5M,ZWN39-8M,ZWN39-10M
Description:
Midrange Speaker,ZWN39-6.5M,ZWN39-8M,ZWN39-10M
Product Name:
Car Midrange Speaker-28
Model:
LZ17-8B,LZ-10B,LZ17-12B
Description:
Product Name:
Car Midrange Speaker-MD210-405
Model:
MD210-405
Description:
MD210-405 POWER150W RMS/300W MAX U-YOKE:Φ112X4 PLATE:Φ112X5 VOICE COIL:CCAW1.5'' KSV MAGNET: Φ120XΦ60X20 Y30 Freq. Resp. ：70 HZ---7.5 KHZ SENSITIVITY：96dB/W/M IMPEDANCE:4 OHMS Re:3.4 OHMS MATERIAL:IRON FRAME DIMENSION :Φ209X83
Product Name:
Car Midrange Speaker-25
Model:
ZW98-6.5B,ZW98-8B,ZW98-10B
Description:
Car Midrange Speaker,car coaxial speaker,ZW98-6.5B,ZW98-8B,ZW98-10B
Product Name:
Midrange Speaker-37
Model:
LZ-200-E8,LZ-250-E10,LZ-300-E12
Description:
Midrange Speaker,LZ-200-E8,LZ-250-E10,LZ-300-E12
Product Name:
Car Midrange Speaker-Y135-402
Model:
Y135-402
Description:
Y135-402 MID RANGE SPEAKER POWER 50W RMS/100W MAX VOICE COIL:Φ25.5MM,(1'' KSV CCAW) U-YOKE:Φ74X3 PLATE:Φ74X3 MAGNET: Φ80XΦ40X15 Y30 Freq. Resp. ：80 HZ---14 KHZ SENSITIVITY：93dB/W/M IMPEDANCE:4 OHMS Re:3.4 OHMS DIMENSION :Φ134*66mm
Product Name:
Car Midrange Speaker-15
Model:
MDZ-166-04
Description:
Product Name:
Midrange Speaker-38
Model:
LZ-39-8,LZ-39-10,LZ-39-12
Description:
Midrange Speaker,LZ-39-8,LZ-39-10,LZ-39-12
