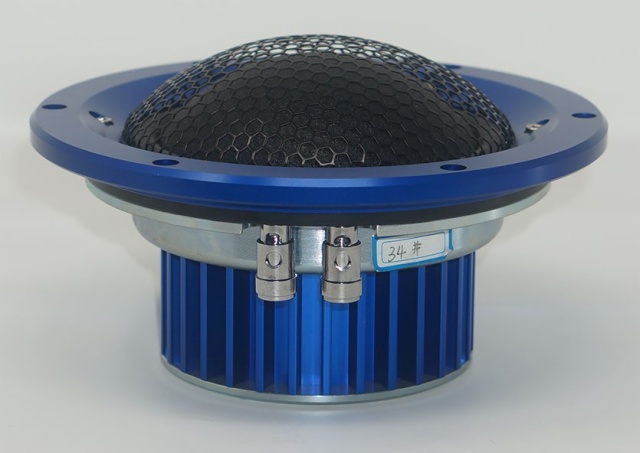

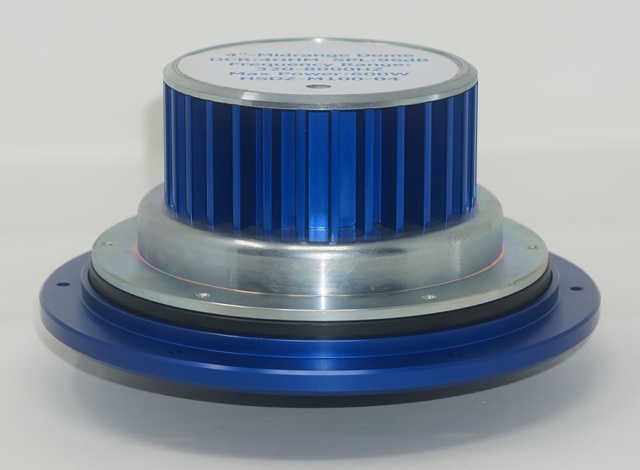

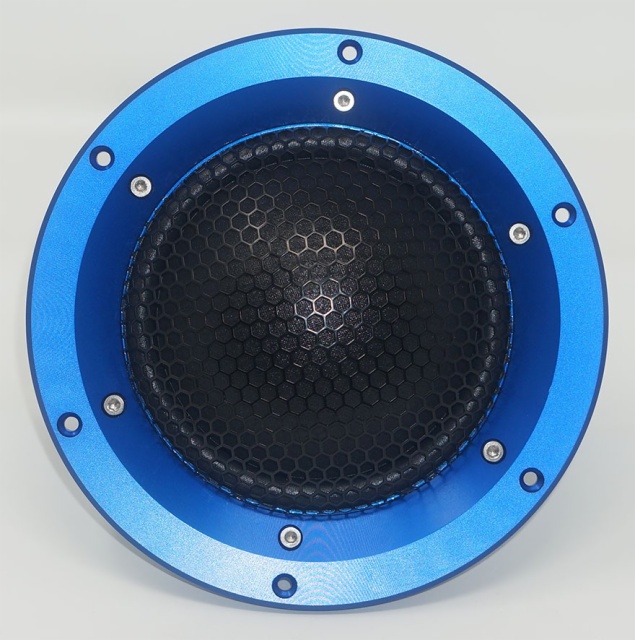

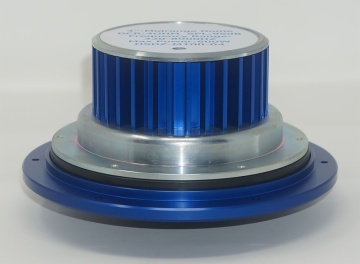

MDR-100 MIDRAGE SPEAKER

Item Code:MIDRAGE SPEAKER Features:
  • Description
SIZE:4" MIDRANGE SPEAKER
POWER:200W RMS / 400W MAX
VOICE COIL:φ99.8MM (4” TSV CCAW),
MAGNET:φ97*8   N45                                                         WIDTH OF COPPERWIRE :  8MM
IMPEDANCE:4OHMS Re:3.4 ohms
FREQ.RESP.:350HZ-9000HZ
SENSITIVITY:96 dB/W/M                                                                  Dimension :  φ186*110mm
Mounting hole : φ 160mm
Approx.:              2.70kg

Other Products

Product Name:
CAR MIDRANGE SPEAKER-4
Model:
MDR-75
Description:
Product Name:
Midrange Speaker
Model:
MDR50
Description:
Product Name:
Car Midrange Speaker-21
Model:
MDZ-166-04,MDZ-200-04,MDZ-260-04
Description:
Car Midrange Speaker,MDZ-166-04,MDZ-200-04,MDZ-260-04
Product Name:
Midrange Speaker-MD166-413
Model:
MD166-413
Description:
MD166-413 POWER 100W RMS/200W MAX VOICE COIL:Φ38.5MM,(1.5'' KSV) WIDTH OF COPPERWIRE :6 mm MAGNET: Φ100XΦ50X20 Y30 Freq. Resp. :70 Hz---8 KHz SENSITIVITY:91dB/W/M IMPEDANCE:4 OHMS Re:3.4 OHMS DIMENSION :Φ167*67mm
Product Name:
Car Midrange Speaker-41
Model:
ZW166-AB
Description:
Car Midrange Speaker,ZW166-AB
Product Name:
Car Midrange Speaker-9
Model:
MD-300-01
Description:
Product Name:
Car Midrange Speaker-MD166-421
Model:
MD166-421
Description:
MD166-421 POWER100W RMS/200W MAX U-YOKE:Φ102X4 PLATE:Φ102X4 VOICE COIL:CCAW1.5'' KSV MAGNET: Φ110XΦ55X20 Y30 Freq. Resp. :80 HZ---9 KHZ SENSITIVITY:94dB/W/M IMPEDANCE:4 OHMS Re:3.4 OHMS MATERIAL:IRON FRAME DIMENSION :Φ167X69
Product Name:
Car Midrange Speaker-16
Model:
MDZ-166-05
Description:
more
