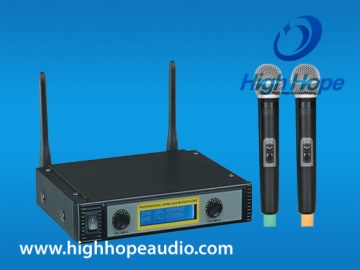

UHF MICROPHONE IU-2058 IU-2058

Item Code:IU-2058 Features:
  • Description

Receiver:

 Carrier Wave Frequency Range: UHF 614--814MHz
Oscillation Mode:Quartz Controlled Fixed Frequency

Carrier Wave Stability: 10PPM
Sensitivity:-105d B @ sinad=12 d B                              S/N Ratio:                   >105dB
T.H.D.:                      <0.5% @1KHz                   Image rejection:            85 d B typical
Spurious rejection:         75 d B typical
Frequency Responses:          40 Hz--18KHz
Carrier Frequency:            760-860 MHz
Working distance:             200 feet
Squelch Control:              dual-squelch circuit
AF Output Impedance:          2.2kΩ
Max. Output Level:           Balance:0-400mv,
                             unbalance:0--200mv:
Display:                      LCD
Power Supply: Extermal DC Power Supply,0.35A,12-18V DC
Output Connector:2XLR balanced socket unbalance TRs 6.35mm socket
Dimensions(m/m): 200(L)X46(H)X158(D)
Weight: 1kg
Transmitter(handheld)
Transmitter Power:                      30mw
Spurious emission: <40 dB(with carrier)
Display:LED  Bettery: 1.5vx2 10hours
